Most people pick the light last, after the sling, the stock and the ammo. On a home defense shotgun that’s backwards. If you can’t see who’s at the end of the hallway, the gun can’t help you, and a shotgun is the hardest long gun to light well. The pump moves, the magazine tube is round, and plenty of factory guns have no rail at all.
So this guide starts with fit, not lumens. I’ve sorted six lights by how they mount, checked each against the maker’s own compatibility list, and flagged the models where they won’t go on. The fit checker below does the matching for you.
Short version: if you run a Mossberg 500, 590 or Remington 870, look hard at the Streamlight TL-Racker. If your gun has a rail, start with the Streamlight ProTac HL-X.
Quick Picks
Shotgun Lights Compared
The TL-Racker and Nightstick replace your forend. The other four need a rail or a mount.
Will It Fit Your Shotgun?
Pick your shotgun and watch how a light goes on it. The list below the drawing sorts all six picks by fit.
Loading the shotgun light fit checker. If it doesn’t appear, the comparison above and the reviews below cover the same fit details.

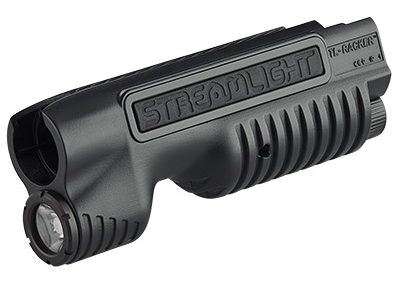

1. Streamlight TL-Racker: Best Overall for Pump Shotguns
Why I chose it: The TL-Racker isn’t a light you bolt onto a pump. It is the pump. It replaces your factory forend, so the light, switch and grip become one part with no cable to snag the action. It’s the pick for Mossberg 500/590, Remington 870 and 590 Shockwave owners.
Key specs
- 1,000 lumens, 20,000 candela, 283 m beam
- 1.5 hours on two CR123A batteries (included)
- 8.00 in long, 12.1 oz with batteries
- IPX7 waterproof, impact-resistant nylon body
- Models: 69600 (Mossberg 500/590 with 7 3/4 in action slide), 69601 (Remington 870 and TAC-14), 69602 (Mossberg 590 Shockwave)
Pros
- No cords or tape switch to route
- Long ambidextrous switch pad, momentary or constant on
- Forend wrench in the box
Cons
- Each model fits only its listed guns
- Won’t fit Mossberg Flex models or the 870 Express Supermag
- Heavier than a stock forend
Performance analysis: The switch pad sits where your fingers already are, so you light the room without changing your grip. On a pump that matters more than raw output. The 20,000 candela beam reaches across a yard and still spills wide enough for a room.
Check your action slide before ordering the Mossberg version, since Streamlight lists the 7 3/4 inch slide for the 500 and 590.

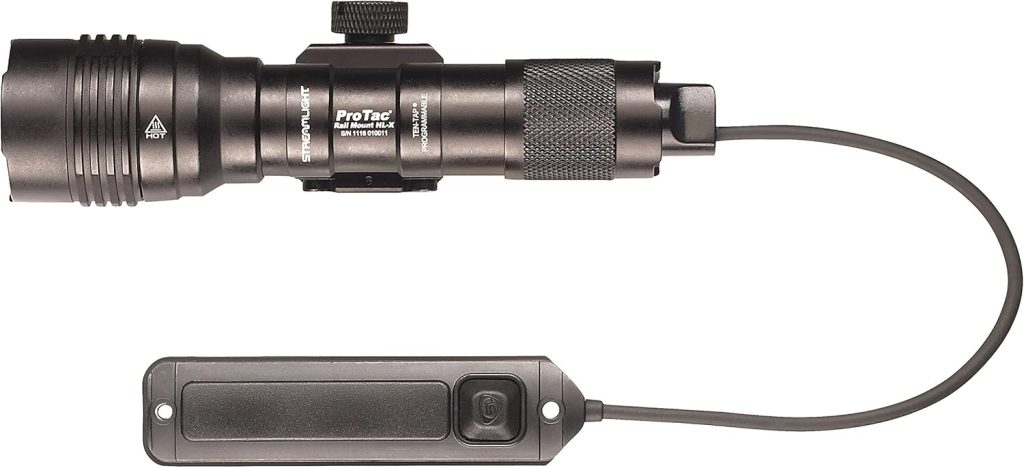

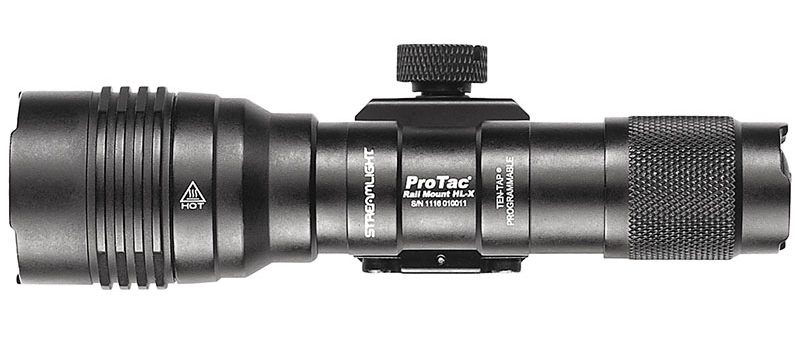

2. Streamlight ProTac Rail Mount HL-X: Best for Semi-Autos and Railed Guns
Why I chose it: If your shotgun already has a rail or M-LOK slots, the HL-X gives you the most reach for the money here. It ships with a pressure switch and a tail switch, and it takes two kinds of battery. Semi-auto owners should start here.
Key specs
- 1,000 lumens, 27,600 candela, 332 m beam
- 1.25 hours on CR123A, 1.5 hours on the SL-B26 rechargeable pack
- Low mode: 60 lumens for about 20 hours
- Integrated Picatinny rail clamp
- IPX7 with the tail switch, IPX4 with the remote switch
Pros
- Highest candela in this guide
- Pressure switch and tail switch both included
- Runs on CR123A or a rechargeable pack
Cons
- Bigger than TLR-style lights
- Switch cord needs careful routing on a pump
- Less water resistant with the remote switch fitted
Performance analysis: Candela is what sets it apart. It throws a defined hotspot farther than the TL-Racker or X300U, which helps on rural property where a threat may be across a yard.
Don’t mix it up with the newer HL-X Pro, a different model with higher candela figures.

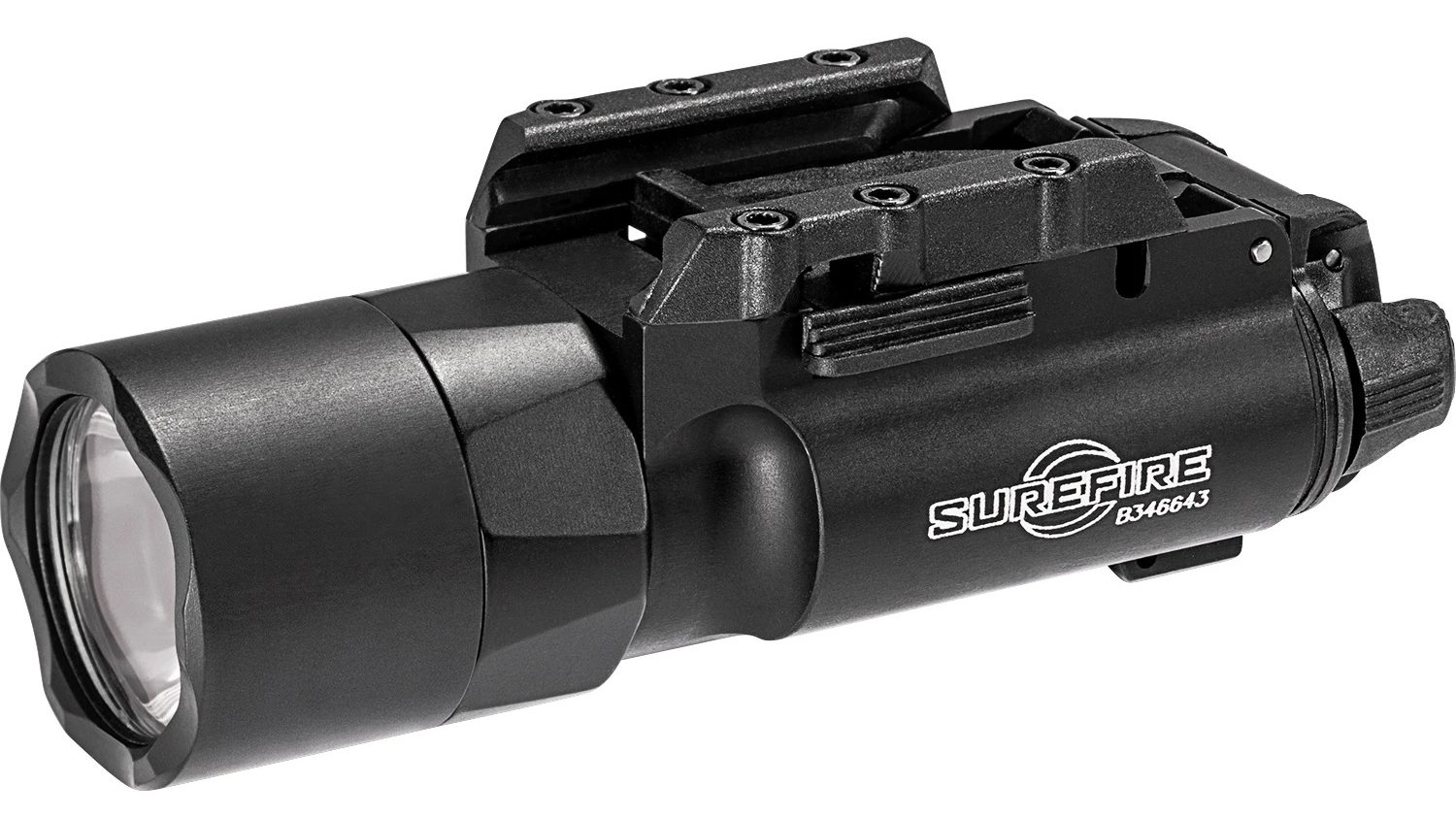

3. SureFire X300U: Best Premium Duty Light
Why I chose it: The X300 has been the reference weapon light for police and military units for years, and the current X300U-A puts out 1,000 lumens in a 4 oz body. On a shotgun it rides on a short rail or a Mag Tube Rail. Buy it if you want the most proven name and plan to keep it for a decade.
Key specs
- 1,000 lumens, 11,300 candela
- 1.25 hours on two 123A batteries (included)
- 4.0 oz with batteries
- Rail-Lock fits Universal or Picatinny rails, IPX7
- Optional XT07 tape switch for long guns
Pros
- Proven under hard use for years
- Smallest and lightest light here
- Tape switch option for a pump grip
Cons
- Lowest candela of the full-power picks
- Tape switch sold separately
- Premium price bracket
Performance analysis: The wide, even beam suits the inside of a house, where you want the whole room lit rather than a tight spot. Outdoors, the HL-X or TLR RM 2 reach farther.
Ahead of a pump, the rear switch is a stretch for your support hand, so budget for the tape switch.

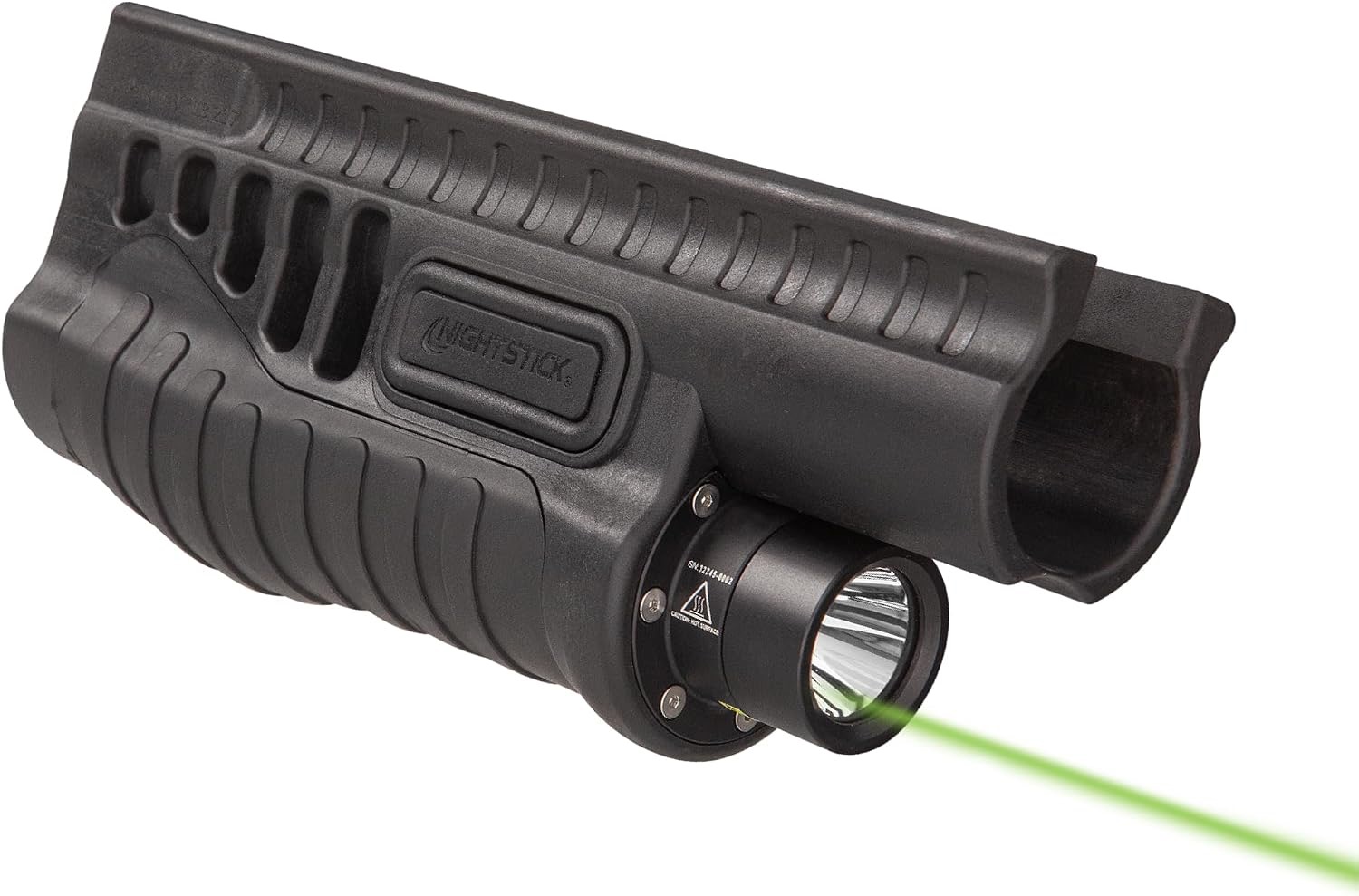

4. Nightstick SFL: Best Light and Laser Forend
Why I chose it: The SFL takes the TL-Racker idea and adds a green laser. It replaces your forend, has the highest lumen rating here, and Nightstick lists the Mossberg 590A1, which the TL-Racker listing doesn’t name. It suits pump owners who want a laser and don’t mind extra weight.
Key specs
- 1,200 lumens, 10,315 candela, 203 m beam
- 1.5 hours on two CR123A batteries (included)
- Green laser: light only, laser only, or both
- 17.5 oz, IPX7
- SFL-11GL fits Mossberg 500/590/590A1/Shockwave; SFL-13GL fits Remington 870/TAC-14
Pros
- Brightest lumen rating here
- Laser built in, no extra mount
- Guarded ambidextrous switches
Cons
- Heaviest light in this guide
- Shortest beam of the full-power picks
- Doesn’t fit Mossberg 590R, 590RM or their Standoff versions
Performance analysis: It’s bright up close, but the lower candela fades sooner across a yard than the TL-Racker. Buy it for the laser, and treat that laser as a training aid and a check for awkward angles, not a replacement for your sights.
The SFL-11WL and SFL-13WL are the light-only versions.

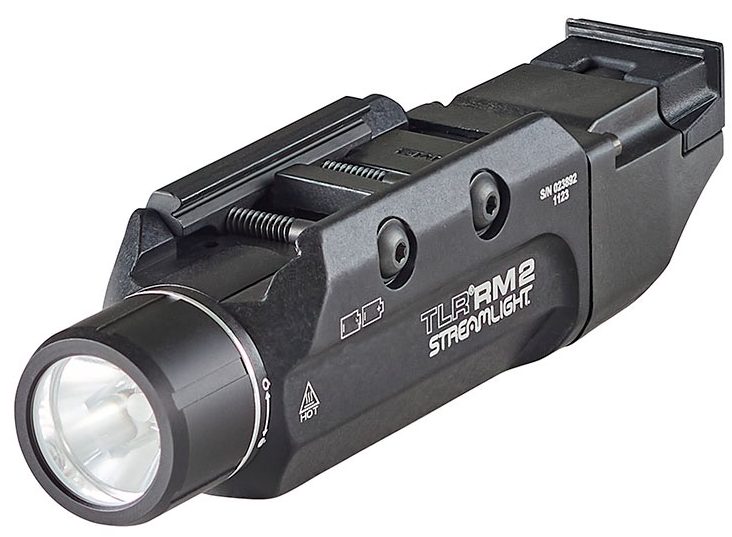

5. Streamlight TLR RM 2: Best for a Shotgun With No Rail
Why I chose it: Most factory pumps have no rail where a light should go. Streamlight’s Mag Tube Rail clamps a short Picatinny section to the magazine tube, and the low-profile TLR RM 2 sits on it at 6 o’clock. You get a full-power light without replacing any parts.
Key specs
- 1,000 lumens, 22,000 candela, 297 m beam
- 1.5 hours on two CR123A batteries (included)
- 4.97 in long, 4.68 oz, IPX7
- Independent push-button and remote pressure switches
- Mag Tube Rail (69901) fits tubes about 1 inch in diameter
Pros
- Strong candela in a small body
- Two switches that work independently
- No gunsmithing or forend swap
Cons
- Mag Tube Rail sold separately
- Tube fit varies by gun
- Needs bare tube ahead of the forend
Performance analysis: The beam is tighter than the X300U’s, so it reaches farther outside and still lights a room. Streamlight designed the remote switch to exit at 90 degrees, which keeps the cord clear on a short rail.
Measure your tube first, since at least one Benelli M4 owner found the clamp didn’t fit.
No rail on your gun? Add the Mag Tube Rail.

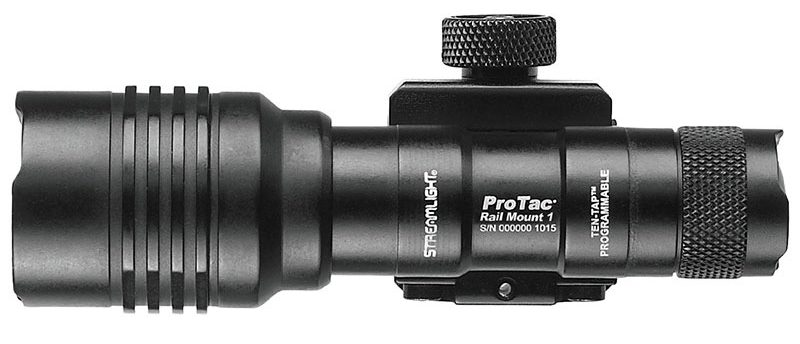

6. Streamlight ProTac Rail Mount 1: Best Budget Pick
Why I chose it: Cheap no-name lights are where shotgun builds fail, because 12 gauge recoil shakes weak switches apart. The Rail Mount 1 keeps you in a brand with a lifetime warranty at a budget price bracket. It runs on a CR123A or a plain AA, which matters when CR123A batteries run short.
Key specs
- 350 lumens, 12,000 candela, 219 m beam on a CR123A
- 150 lumens, 4,950 candela, 141 m beam on an AA
- 4.25 in long, 4.3 oz
- Integrated Picatinny rail clamp
- Kit includes pressure switch, tail cap, clips, one AA and one CR123A
Pros
- Runs on batteries you can buy anywhere
- Full kit in the box
- Plenty of candela for indoor ID
Cons
- 350 lumens is the low end for defense
- Output drops by more than half on an AA
- Still needs a rail or tube mount
Performance analysis: For a house, 350 lumens and 12,000 candela will identify someone across a room and down a hallway. It won’t light a back field like the HL-X.
It’s the light that keeps working when the CR123As run out, which suits a prepper’s shotgun.
How to Choose a Shotgun Light
Start with how it mounts
This decision narrows everything else. A shotgun gives you four ways to carry a light:
- Forend replacement. The light is built into a new forend. Cleanest on a pump, but each fits only specific models. The Maverick 88’s forend is pinned on, so owners swap in a 500-style action slide first.
- Existing rail or M-LOK. Many tactical semi-autos have slots or a rail near the muzzle. Any rail light clamps straight on.
- Magazine tube clamp. A short rail clamps around the tube ahead of the forend. It needs bare tube, so it suits extended-tube guns.
- Model-specific mount. Some guns, like the Benelli M4, need a mount made for them or an M-LOK replacement forend.
Watch for barrel shadow
A light mounted to the side and behind the muzzle throws the barrel’s shadow into the beam, a dark stripe right where you’re looking. Mounting at 6 o’clock, or as far forward as you can, keeps the beam clear. The fit checker above shows the difference.
Candela matters as much as lumens
Lumens are how much light comes out. Candela is how hard it’s focused. Too much candela indoors bounces off white walls and dazzles you; too little leaves the end of a hallway dim. For most homes, 1,000 lumens with 10,000 to 25,000 candela works well. Our guide to flashlight beam distance explains the math.
Put the switch under your support hand
Your support hand runs the pump, so the switch has to sit where that hand already is. Forend lights solve this by design. With a rail light, mount the pressure switch under your thumb or fingers and fix the cord so it can’t catch the action.
Buy for recoil
Buckshot and slugs hit a light far harder than pistol rounds. Cheap lights fail at the switch, the battery contacts or the mount long before the LED does. Whatever you choose, run a few boxes of your defensive load through it before you trust it.
Frequently Asked Questions
How do you mount a light on a shotgun with no rail?
Swap the forend for a light forend like the TL-Racker if your model is supported. Or clamp a short rail onto the magazine tube and add any rail light. Or fit an M-LOK replacement forend. The tube clamp is cheapest; the forend swap is cleanest.
How many lumens does a home defense shotgun light need?
For most homes, 600 to 1,000 lumens paired with 10,000 to 25,000 candela. That’s enough to identify a person at the far end of a house without blinding yourself off the walls. If you need to see across open ground, go higher on candela, not lumens.
Can you put a pistol light on a shotgun?
Yes. The SureFire X300 and Streamlight TLR-1 work well on a short rail section, and Streamlight built its Mag Tube Rail with TLR lights in mind. Plan on a remote switch, since the light’s own switch may sit out of reach. Our best pistol lights guide covers more options.
Which side should a shotgun light go on?
At 6 o’clock under the barrel, or offset to the side your support thumb rests on, as far forward as possible. That keeps barrel shadow out of the beam and puts the switch under your hand.
The Bottom Line
For a Mossberg 500/590 or Remington 870, the Streamlight TL-Racker is the light I’d put on first, because it fixes the hardest part of lighting a pump: the switch. With a rail, the Streamlight ProTac HL-X gives you the most reach for the money, and the SureFire X300U is the proven premium choice. Want a laser? Go Nightstick SFL. No rail? Pair the Streamlight TLR RM 2 with a Mag Tube Rail. On a tight budget, the Streamlight ProTac Rail Mount 1 still holds up to recoil.
Whichever you pick, shoot it with your defensive load and practice turning it on in the dark. For more on lights in home defense, read our guide to using a flashlight as a weapon.
